Project Description

COMPACT INCINERATORS – CP

ATI Industries offers you waste incinerators with a destruction capacity ranging from 10 to 100 kg/h.

These equipment are reliable solutions that allow the elimination of different types of waste having a variable Lower Calorific Power (LCP), while taking into account your standards for the respect of the environment.*

These incinerators are designed as compact, pre-wired units, making installation simpler. They also have automatic operation that requires few monitoring requirements.

Fuel consumption is limited, thanks to high-power burners that can handle a wider range of waste types.

Model CP 10 CP 30 CP 50 CP 100
Destruction capacity 10 kg/h 30 kg/h 50 kg/h 100 kg/h
Combustion volume (m3) 0.14 0.6 1.2 2
Lower Calorific Value (Kcal/kg) 3.500
Operating time 8-12 hours 12-16 hours
% of inerts (according to waste) 3%
Chimney height 6m 8m
INCINÉRATEURS COMPACTS CP

INCINERATORS SERIES

Incineration Capacity

Incinerator CP10 : 10-15 Kg/h
Incinerator CP30 : 30-40 Kg/h
Incinerator CP50 : 50-60 Kg/h
Incinerator CP100 : 100-120 Kg/h

Benefits

  • Ease of installation
  • User-friendly
  • Possibility to install in a container
  • Very simple maintenance
  • Low cost of use

Ecology

  • Adaptable flue gas treatment system to meet requested standards
  • Waste volume reduced by 97%
Contact Us

OUR INCINERATORS

We conceive and manufacture incinerators adapted to every need, from 10kg to 1.5 tons an hour. We combine filtration systems to these incinerators, allowing to adapt to every “air pollution” regulations that must be respected by our customers.

Compact Incinerators – CP

Reliable, with an excellent longevity and economical, these compact incinerators can treat up to 100kg an hour.

Read more

Mobile Incinerators

Installed in a movable container, these incinerators are turnkey solutions, very easy to use and maintain.

Read more

High Performance Incinerators – HP

The High-Performance incinerators are adapted to a continuous operation and are usable for several applications.

Read more

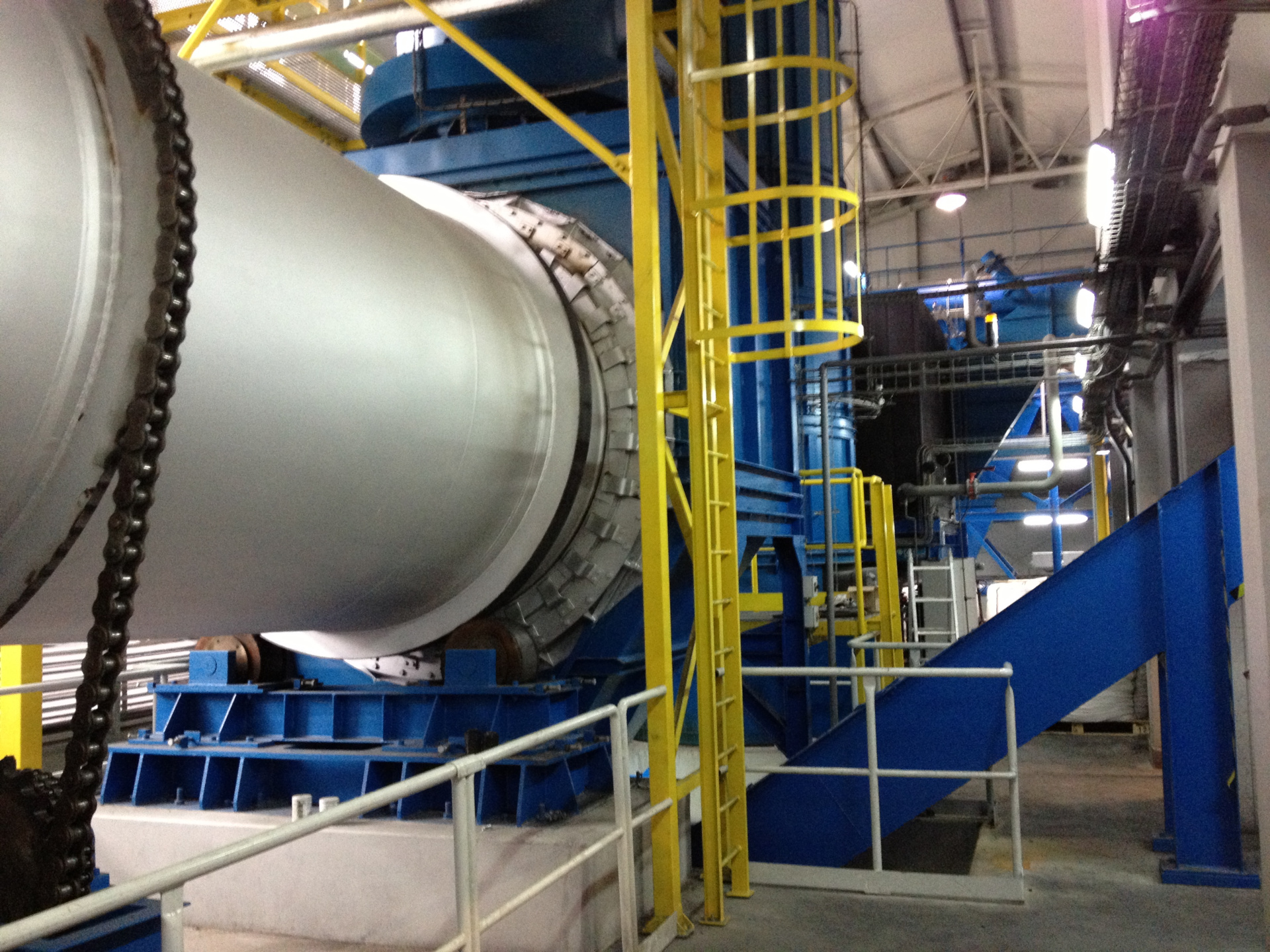

Rotary Kilns – FRCD

The rotary kiln guarantees an optimal waste elimination, independently of the humidity rate, the composition and compacting of the waste.

En savoir plus
